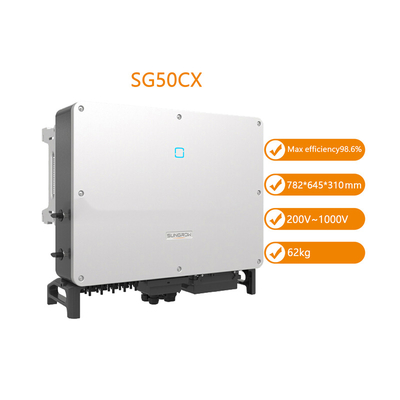

Solar Power System DJSC Solar Grid Tied Inverter Inverter Sungrow 33kw 40kw 50kw Solar System Inverters

1.0 Pieces
MOQ
Solar Power System DJSC Solar Grid Tied Inverter Inverter Sungrow 33kw 40kw 50kw Solar System Inverters
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: SG33/40/50/110CX
Input Voltage: 200VAC/1100VAC
Output Voltage: 312 - 528 V
Output Current: 55.2 A/66.9 A/83.6 A/26*9A
Output Frequency: 50Hz/60Hz
Output Type: Single, Triple, Other
Size: 702*595*310mm/782*645*310mm/782*645*310mm
Type: DC/AC Inverters
Inverter Efficiency: 98.6 % / 98.3 % 98.6% / 98.3% 98.7% / 98.4%
Certificate: CE/TUV/IEC/CQC/MEA/PEA/INMETRO
Warranty: 5 Year
Weight: 50kg/58kg/62kg/89kg
Product Name: Sungrow Solar Inverter
Application: Solar Power System, Home/Commercial/Factory
Rated power: 33/40/50/110kw
Start Voltage: 220V/250V
Protection: IP65
Communication: WIFI/GPRS
Inverter type: Three Phrase
Informação básica
Certificação: CE/TUV/IEC/CQC/MEA/PEA/INMETRO
Model Number: SG33/40/50/110CX
Condições de Pagamento e Envio
Packaging Details: Sungrow 33kw 40kw 50kw 110kw International version Sungrow Inverters solar inverters PC/Carton with shockproof cushioning material.
Supply Ability: 10000 Piece/Pieces per Week
Descrição de produto
Product Description
Input (DC)
Type Designation
SG-33CX
SG-40CX
SG-50CX
SG-110CX
Max.PV input voltage
1100V
Min.PV Input voltage/Star-up input voltage
200V/250V
MPP voltage range
585V
MPP voltage range for nominal power
200-1000V
No.of independent MPP inputs
3
4
5
9
Max.number of PV stings per MPPT
2
Max.PV input current
78A
104A
130A
26A*9
Max.DC short-circuit current
120A
160A
200A
40A*9
Output (AC)
Type Designation
SG-33CX
SG-40CX
SG-50CX
SG-110CX
AC output power

33 kVA 45 ℃,

 400Vac /

 36.3 kVA  40 ℃,400Vac

33 KVA 50 ℃,

415Vac /

36.3 KVA 45 ℃, 415Va

40 kVA  45 ℃,

 400Vac /

44 kVA  40 ℃,

400Vac

40 KVA 50 ℃,

415Vac /

44 KVA 45 ℃,

415Vac

50 kVA 45 ℃, 400Vac /

55kVA  40 ℃,400Vac

50KVA 50 ℃, 415Vac /

55kVA 45 ℃,415Vac (Australia: max. 50 kVA)

110 kVA  45 ℃
100 kVA  50 ℃
Max. AC output current
55.2A
66.9A
83.6A
158.8 A
Nominal AC voltage
3/N/PE,230/400V
AC voltage range
312-528V
320 – 460 V
Nominal grid freuquency/Grid frequency range
50Hz/45-55Hz,60Hz/55-65Hz
THD
<3%(at norminal power)
DC Current injection
<0.5% In
Power factor at norminal power/Ajustable power factor
>0.99 / 0.8 lead ing - 0.8 lagg ing
Feed-in phase/Connection phase
3/3
Max. efficiency / European efficiency
98.6 % / 98.3 %
98.6% / 98.3%
98.7% / 98.4%
98.7 % / 98.5%
Protection
DC reverse connection protection
Yes
AC short circuit protection
Yes
Leakage current protection
Yes
Grid monitoring
Yes
DC switch
Yes (not available for Australia)
AC switch
No
